The ARCOS Round Vapor Tight High Bay is a high-performance lighting solution for industrial and commercial use. Constructed from a thermally conductive molded polymer, its design offers a lighter alternative to traditional die-cast fixtures while ensuring optimal thermal management. An IP65-rated housing protects the unit from dust and water jets, providing long-term durability in environments. The housing and driver box is damp location rated.
5 Year Warranty, BAA/BABA Compliant, High Bay, NEMA 4X, NSF, UL Listed

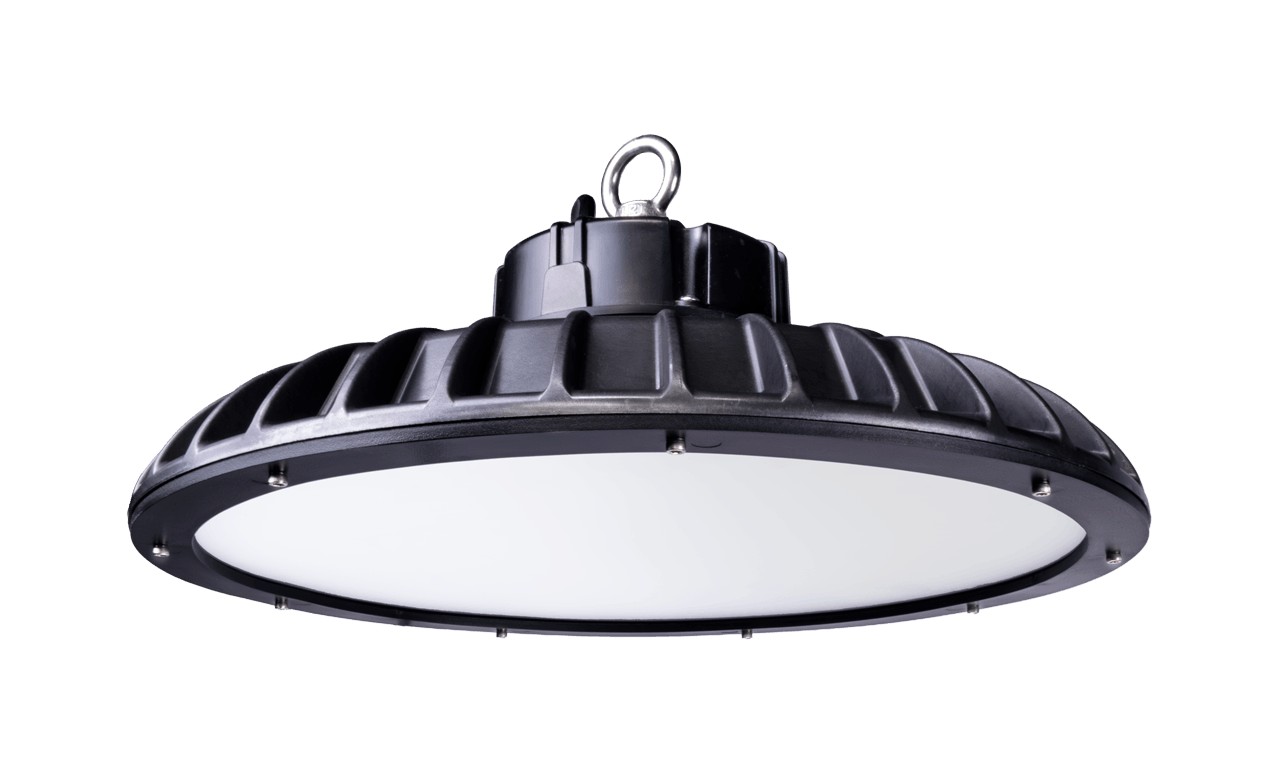

ARCOS – Round Vapor Tight High Bay LED Fixture – Damp Location Rated
Dimensions
| Dimensions | 18” x ” |
|---|
Construction
| Weight | |
|---|---|
| Housing Material | Thermally Conductive Polymer Housing |
| Lens Material | Acrylic, Polycarbonate, Glass |
| Lens Options | Drop Lens, Flat Lens |
Performance
| Lumens | up to 30,000 lm |
|---|---|
| Wattage | |
| Efficacy | |
| CRI | 80 or 90 |
| Operating Temperature | |
| CCT Options | 4000K, 5000K |
Electrical
| Input | 120-277 VAC |
|---|---|
| High Voltage Option | 347-480 VAC |
| Frequency | 50/60 Hz |
| Power Factor | >0.90 |
| Dimming / Option | 0-10V Standard / Dim-to-off |
Environmental
| IP Ratings | IP65 |
|---|---|
| UL Listing | Wet Location, UL 1598 |
Warranty
| 5-Year |
Mounting
| Mounting Option | ¾” Hook, ¾” Die Cast Hub |
|---|
| Dimensions | 17.89 × 5.43 in |
|---|
