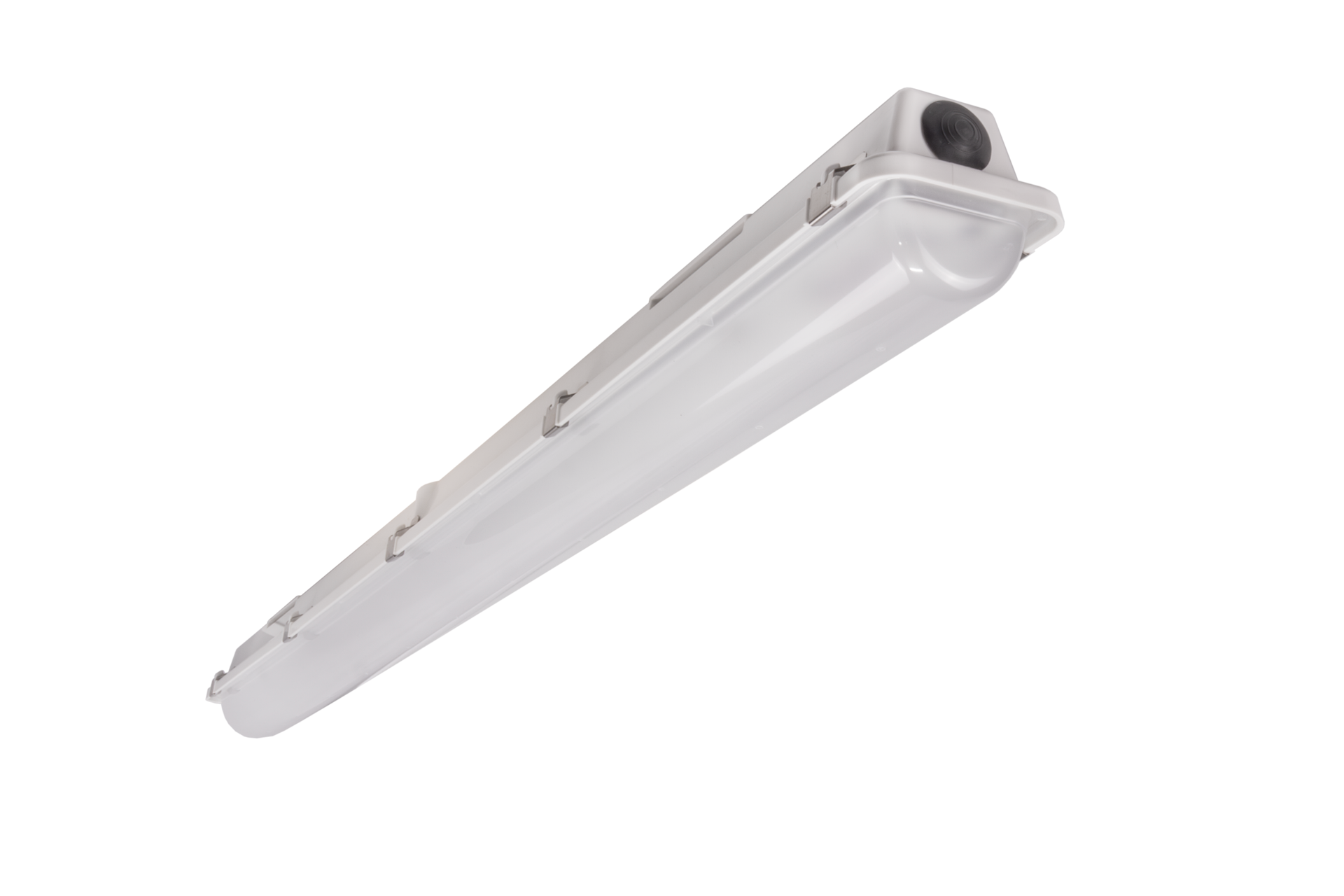

Linear Vapor Tight Light Fixture 4ft
, , , , , , , , , , ,

Linear Value Series 4 Ft. LED Light – IP65 NSF BAA/BABA

LVT Linear Value Series Vapor Tight LED Light fixture is available in 4ft. IP65 rated, NSF certified, UL Listed, BAA/BABA compliant.

SKU: LVS-4SFP-7L40-SS-MB-C10PL5 Categories: , , , , , , , , , , , Tag:
Request a QuoteCall — Quick Ship Available
Ingress Protection 65, IP65 Icon, Water droplets reflectingIngress Protection 66, IP66 Icon, Water droplets reflectingIngress Protection 67, IP67 Icon, Water droplets reflectingIngress Protection 69, IP69 Icon, Water droplets reflectingBAA BABA Compliant Icon5 Year Warranty LogoUL ListedNEMA 4X IconNSF Icon

The LVT Linear Value Series Vapor Tight LED Lights deliver IP65 sealed protection for everyday damp and dusty spaces where premium-tier ratings would be overkill. Impact-resistant UL 5VA polycarbonate housing and a simplified latching system seal out moisture and contaminants, while the open-bottom design provides tool-free LED access and UVC retrofit capability. Available in 4ft. lengths. Made in USA with BAA and BABA compliance.

Dimensions

Dimensions51.75” x 4.29” x 4.1”

Construction

Weight10 lbs
Housing MaterialUL 5VA Polycarbonate Housing
Lens OptionsClear, Frosted
Lens MaterialAcrylic or Polycarbonate

Performance

Lumens4,000 - 10,000 lm
Wattage12.5 - 57W
EfficacyUp to 175 lm/W
CCT Options3000K, 4000K, 5000K
CRI80 (Standard)
Operating Temp-40ºF to 131ºF (-40ºC to 55ºC)

Electrical

Input120-277 VAC (Universal)
High Voltage Option347-480 VAC
Frequency50/60 Hz
Power Factor>0.90
Dimming / Option0-10V Standard
Surge Protection6kV

Environmental

IP RatingIP65
NEMA Rating4X
NSFCertified for Splash Zones
UL ListingWet Location, UL 1598

Mounting

Mounting OptionSurface, Pendant
Hub Sizes½” NPT, ¾” NPT
Continuous RowYes

Warranty

Warranty5 Years
Dimensions51.9 × 14.6 × 5.9 in
Length

4ft
